MFO & USO
Pixel Pitch:6/8/10mm
Product Introduction
Front and Rear Accessible
1、Front Access
1/4 turn on the module latches from front, the module can be pulled out.
2、Rear Access
1/4 turn on the module latches from rear, the module can be taken out.
Fine Visuals

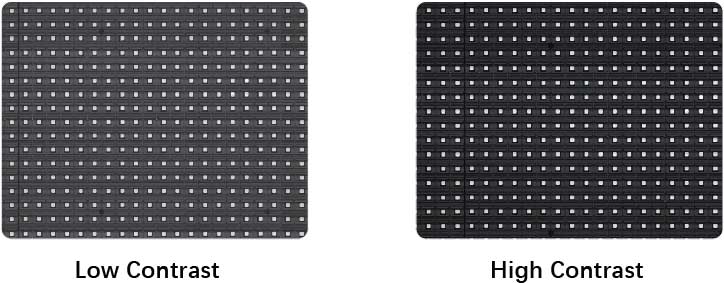

1、High Contrast
The panel uses bright LED and its masks are designed and built long louvers that shade LEDs from the Sun, which brings high contrast to the panel.
2、High Grayscale
Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 14 bits or even 16 bits, then the screen is able to perform as rich details as what the content has.
3、High Refresh Rate
Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 3840Hz or even 7680Hz, then the screen is able to perform best smooth.
High Reliability
1、Fine Ingress Protection for Outdoor
Front of the panel is made tested IP67 while the rear is IP65, which will withstand any outdoor condition.
2、Strong & Good Cooling
The Chassis is made of 2mm thick sheet aluminum coated with carbon powder, strong, antirust, and aluminum made chassis helps heat dissipation.
3、Internal Connection and Cabling Protected
Channels to protect the cables and connectors are designed and built on the panel.
Powerful Compatibility
This will help save most of the cost on the whole project when users upgrade or renew the screen. What it takes will be just changing the modules, others such as bracket, power and data layout and facilities remain.
Low Power Consumption
The MFO uses LED of big-sized and gold chip that performs super high brightness while consuming low power.
Technical Parameters
| Parameters | USO-6 | USO-8 | USO-10 | MFO-10U | MFO-16U |
| LED | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 |
| Pixel Pitch (mm) | 6.67 | 8 | 10 | 10 | 16.67 |
|
Module Size (WxHmm) |
320x320 |
320x320 |
320x320 |
200x400 |
200x400 |
| Module Resolution |
48x48 |
40x40 |
32x32 |
20x40 |
12x24 |
| Cabinet Size (WxHmm) | 1280x1280 | 1280x1280 | 1280x1280 | 1200x1200 | 1200x1200 |
| Weights (kg/㎡) | 29 | 29 | 29 | 30 | 30 |
| Pxiel Density (Pixels/㎡) | 22,500 | 15,625 | 10,000 | 10,000 | 3,600 |
| IP Rating | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Cabinet Materials | sheet aluminum | sheet aluminum | sheet aluminum | sheet aluminum | sheet aluminum |
| Brightness (Nits) | 5,500-6,000 | 6,000-6,500 | 6,000-6,500 | 10,000 | 10,000 |
| Viewing Angle (H./V.) | 140°/120° | 140°/120° | 140°/120° | 120°/120° | 120°/120° |
| Max. Power Consumption (W/㎡) | 850 | 900 | 900 | 350 | 350 |
| Avg. Power Consumption (W/㎡) | 285 | 300 | 300 | 165 | 165 |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Front/Rear |
