ASO Series
Pixel Pitch：2.5/3/4/5/6/6.67/8/10/16 mm

Product Introduction

High Brightness,High Contrast

The panel uses bright LED to bring brightness up to 10,000nits, besides, long louver on mask is used to shade LEDs from the sun and it contributes to high contrast.
Waterproof
IP65/IP54 withstands extreme weather conditions.


Excellent Cooling

Cooling fans and heat emission holes can rapidly dissipate heat, reducing power consumption.

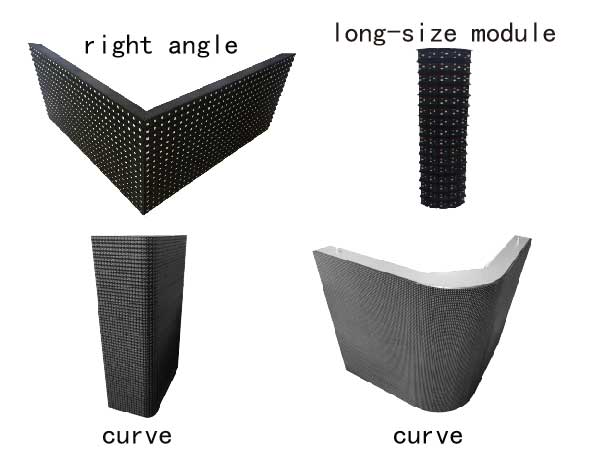

Creative Applications
The panel allows you to realize many creative solutions, it can curve, at right angle, or be customized to many sizes and shapes.

Technical Parameters

Parameters ASO-2.5 ASO-3 ASO-4 ASO-5 ASO-6 ASO-6.67 ASO-8N ASO-8 ASO-10
LED SMD1415 SMD1921 SMD1921 SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
 SMD2727
Pixel Pitch (mm) 2.5 3.076 4 5 6 6.67 8 8
 10
Module Resolution (Pixels) 128x64
 104x52 80x40 64x32 32x32 48x24 32x16
 40x20
 32x16
Module Size (WxHmm)
 320x160
 320x160
 320x160
 320x160
 192x192
 320x160
 256x128
 320x160
 320x160
Cabinet Size (WxHmm) 960x960
 960x960 960x960 960x960 960x960 960x960 1024x1024 960x960
 960x960
Weight (kg/㎡) 45
 45 45 45 45 45 45 45
 45
IP Rating IP65/IP54
 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
 IP65/IP54
Color Temp (K)
3200-9300
(adjustable)
3200-9300
(adjustable)
3200-9300
(adjustable)
3200-9300
(adjustable)
3200-9300
(adjustable)
3200-9300
(adjustable)
3200-9300
(adjustable)
3200-9300
 (adjustable)
3200-9300
(adjustable)
Brightness (Nits) 5000-8000
 5000-8000 5500-8000 5500-8500 6000-10000 6000-10000 6000-10000 6000-10000
 6500-10000
Viewing Angle (H./V.) 140°/120°
 140°/120° 140°/120° 140°/120° 140°/120° 140°/120° 140°/120° 140°/120°
 140°/120°
Contrast Ratio 4000:1
 4000:1 4000:1 5000:1 6000:1 6000:1 6000:1 6000:1
 6000:1
Max. Power Consumption
(W/㎡)
800
 800 800 600-800
 600-800 600-800 600-800 600-800
 600-800
Avg. Power Consumption
(W/㎡)
266
 266 266 266 266 266 266 266
 266
Refresh Rate(HZ) ≥1920-3840
 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥1920-3840 ≥3840
 ≥3840
Cabinet Material sheet metal
 sheet metal sheet metal sheet metal sheet metal sheet metal
 sheet metal sheet metal
 sheet metal
Maintenance Rear
 Rear Rear Rear Rear Rear
 Rear Rear
 Rear
